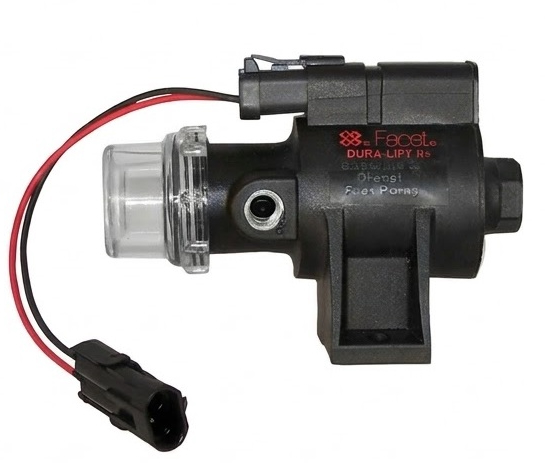

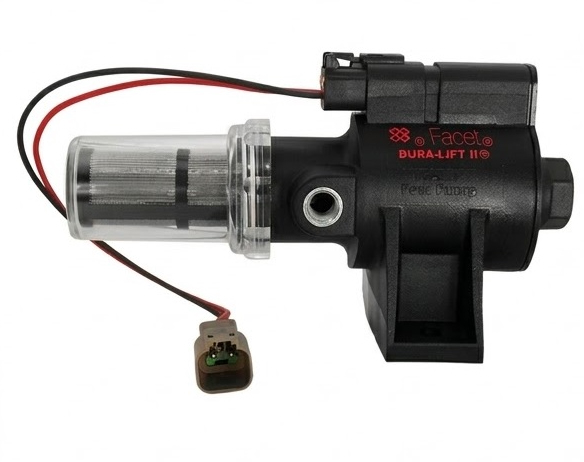

Dura-Lift II

DURA-LIFT II®

Setting Industry Standards

For 70 years, Motor Components, LLC has evolved the industry standard for the diesel electronic priming fuel pumps installed in many well-known off-road equipment around the world. Our fuel pumps can be found in many industries, including automotive, agriculture, construction, utility, generators, military, marine, power sport, refrigeration, and more. Facet® and Purolator® electronic fuel pumps are UL AU1501 listed, Reach, RoHS compliant, meets Coast Guard standards, MTBF up to 10K hours, compatible with Gasoline and Diesel fuels, and designed in 12 and 24 volts.

Read More

Motor Components has a family of 5 different gasoline and diesel fuel pumps to choose from: Cube Solid State, DURA-LIFT®, GOLD-FLO®, POSI-FLO®, and Automotive in-tank fuel pumps and modules. Each family has a unique design purpose, which is why we are confident that we will find a solution to your fuel pump requirements. We also manufacture a large range of gasoline and diesel fuel filters that can be attached directly to the fuel pump or installed as an inline universal fuel filter. Our design engineers are standing by to help you with your next project.
Electronic Fuel Pumps components.

Explore Our Comprehensive Fuel Pump Products

$

Specifications

$

Accessories

$

Cross Reference Guide

$

Automotive

s

Not Intended for Aircraft Use

WARNING: FACET AND PUROLATOR FUEL PUMPS SHOULD NOT BE USED IN AIRCRAFT AS THEY ARE NOT DESIGNED, TESTED OR MANUFACTURED FOR ANY AIRCRAFT APPLICATIONS.

Motor Components, LLC.

2243 Corning Road
Elmira, NY 14903

Phone

Hours

Monday – Friday
8:00 AM – 5:00 PM
UL Listed AU1501
ISO 9001-2015 ISO 14001:2015 Bureau Veritas Certification
Engineered and Assembled in the USA

Part Number: 40007E
Kit Number:
Type: Gold-Flo
Volts: 12
Max/Min: 5.5 - 4.0
GPH: 36
Positive Lead: n/a
Negative Lead: n/a
Fuel Filter Fitting: 1/4 - 18 NPTF
Lift Min: 24"
Check Valve: N
Positive Shut Off Valve: N
Internal Fuel Filter: 74U
Stainless Steel: N

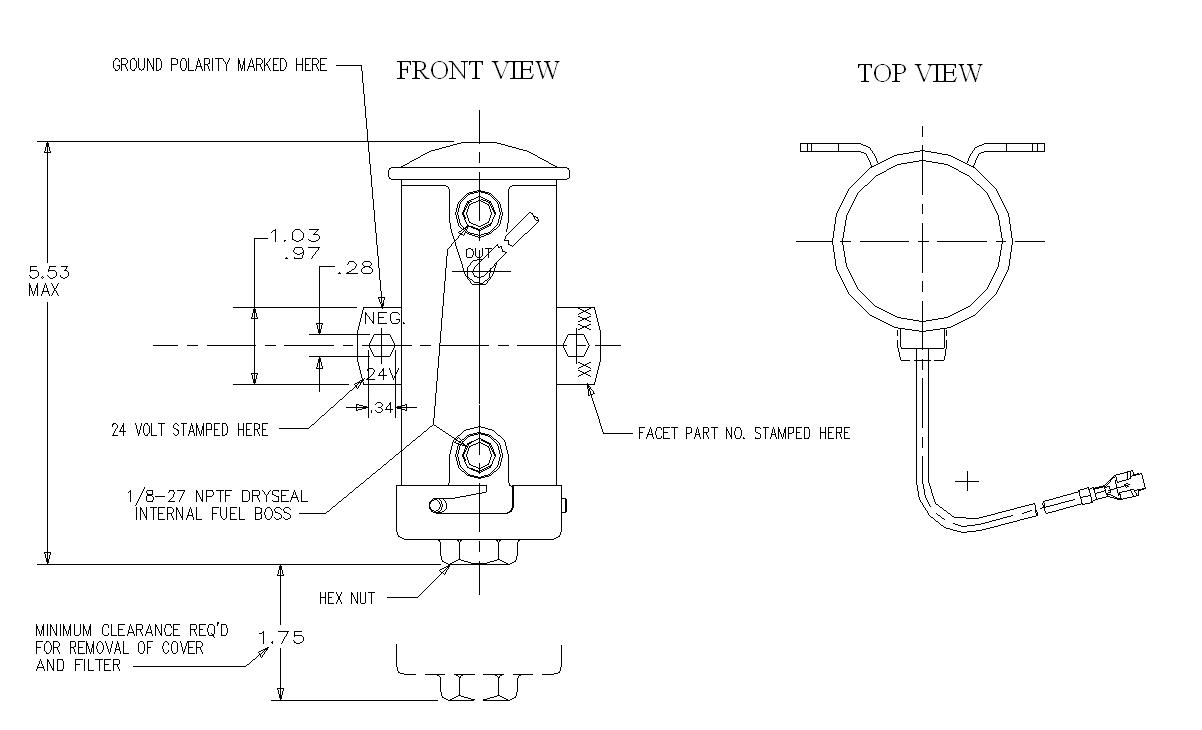

Part Number: 40010E
Kit Number:
Type: Gold-Flo
Volts: 24 Max/Min: 8.0 - 6.0
GPH: 33
Positive Lead: PACKARD
Negative Lead: n/a
Fuel Filter Fitting: 1/8 - 27 NPTF
Lift Min: 24"
Check Valve: N
Positive Shut Off Valve: N
Internal Fuel Filter: 74U
Stainless Steel: N

Part Number: 40051E
Kit Number:
Type: Gold-Flo
Volts: 12
Max/Min: 8.0 - 6.0
GPH: 32
Positive Lead: n/a
Negative Lead: n/a
Fuel Filter Fitting: 1/8 - 27 NPTF
Lift Min: 24"
Check Valve: N
Positive Shut Off Valve: Y
Internal Fuel Filter: 74U
Stainless Steel: N

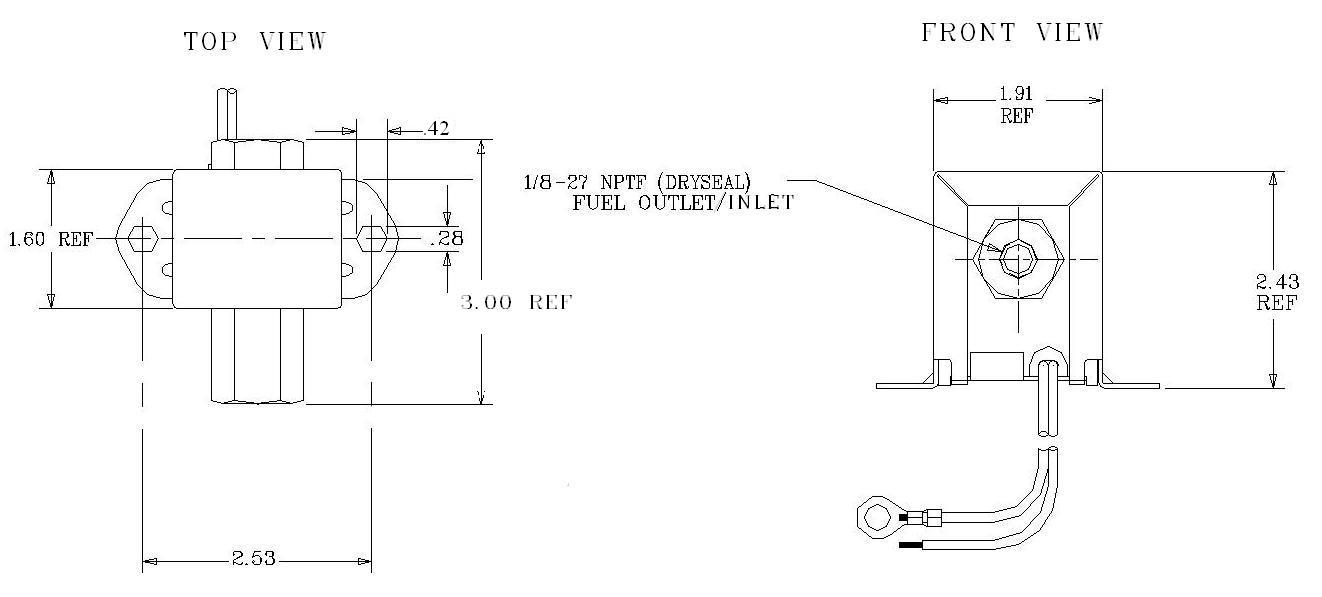

Part Number: 40104
Kit Number:
Type: Cube
Volts: 12
Max/Min: 4.0 - 1.5
GPH: 25
Positive Lead: n/a
Negative Lead: Ring
Fuel Filter Fitting: 1/8 - 27 NPTF
Lift Min: 36"
Check Valve: N
Positive Shut Off Valve: N
Internal Fuel Filter: n/a
Stainless Steel: N


Part Number: 40104
Kit Number:
Type: Cube
Volts: 12
Max/Min: 4.0 - 1.5
GPH: 25
Positive Lead: n/a
Negative Lead: Ring
Fuel Filter Fitting: 1/8 - 27 NPTF
Lift Min: 36"
Check Valve: N
Positive Shut Off Valve: N
Internal Fuel Filter: n/a
Stainless Steel: N

Part Number: 40104
Kit Number: FEP42SV
Type: Cube
Volts: 12
Max/Min: 4.0 - 1.5
GPH: 25
Positive Lead: n/a
Negative Lead: Ring
Fuel Filter Fitting: 1/8 - 27 NPTF
Lift Min: 36"
Check Valve: N
Positive Shut Off Valve: N
Internal Fuel Filter: n/a
Stainless Steel: N

Part Number: 40104
Kit Number: 40245
Type: Cube
Volts: 12
Max/Min: 4.0 - 1.5
GPH: 25
Positive Lead: n/a
Negative Lead: Ring
Fuel Filter Fitting: 1/8 - 27 NPTF
Lift Min: 36"
Check Valve: N
Positive Shut Off Valve: N
Internal Fuel Filter: n/a
Stainless Steel: N

Part Number: 40105
Kit Number:
Type: Cube
Volts: 12
Max/Min: 4.5 - 3.0
GPH: 30
Positive Lead: n/a
Negative Lead: Ring
Fuel Filter Fitting: 1/8 - 27 NPTF
Lift Min: 36"
Check Valve: N
Positive Shut Off Valve: N
Internal Fuel Filter: n/a
Stainless Steel: N

Part Number: 40105
Kit Number: 40101
Type: Cube
Volts: 12
Max/Min: 4.5 - 3.0
GPH: 30
Positive Lead: n/a
Negative Lead: Ring
Fuel Filter Fitting: 1/8 - 27 NPTF
Lift Min: 36"
Check Valve: N
Positive Shut Off Valve: N
Internal Fuel Filter: n/a
Stainless Steel: N

Part Number: 40105
Kit Number: 40242
Type: Cube
Volts: 12
Max/Min: 4.5 - 3.0
GPH: 30
Positive Lead: n/a
Negative Lead: Ring
Fuel Filter Fitting: 1/8 - 27 NPTF
Lift Min: 36"
Check Valve: N
Positive Shut Off Valve: N
Internal Fuel Filter: n/a
Stainless Steel: N

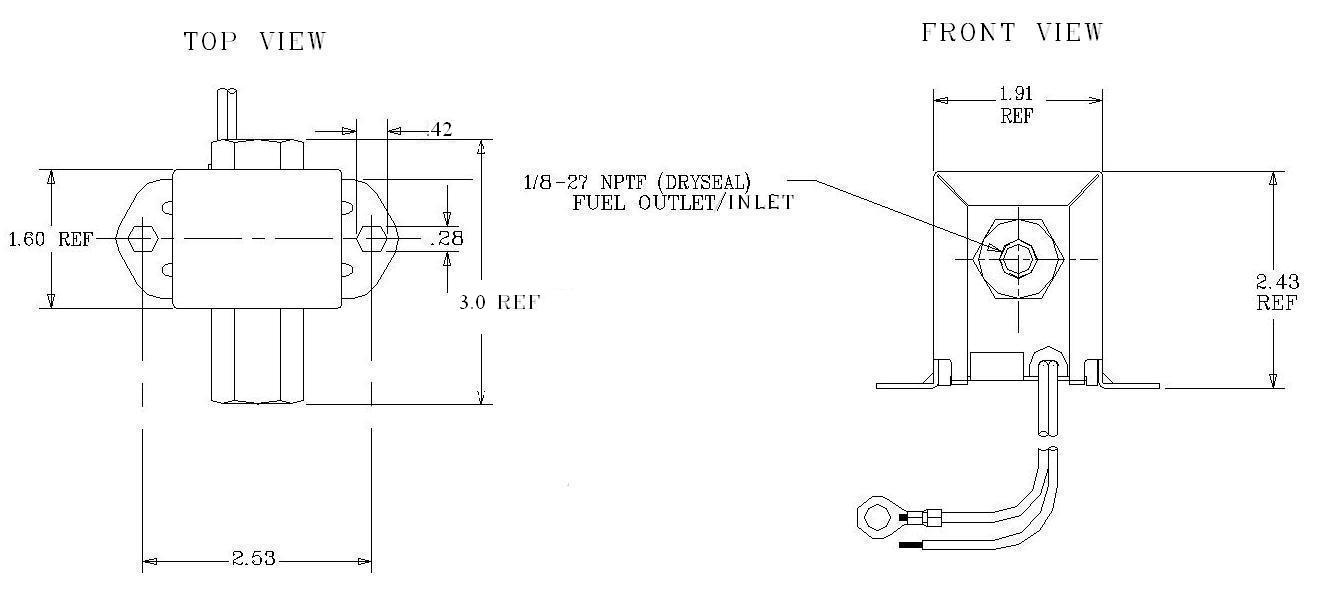

Part Number: 40106
Kit Number:
Type: Cube
Volts: 12
Max/Min: 7.0 - 4.0
GPH: 32
Positive Lead: n/a
Negative Lead: Ring
Fuel Filter Fitting: 1/8 - 27 NPTF
Lift Min: 36"
Check Valve: N
Positive Shut Off Valve: N
Internal Fuel Filter: n/a
Stainless Steel: N

Part Number: 40106
Kit Number: FEP12SV
Type: Cube
Volts: 12
Max/Min: 7.0 - 4.0
GPH: 32
Positive Lead: n/a
Negative Lead: Ring
Fuel Filter Fitting: 1/8 - 27 NPTF
Lift Min: 36"
Check Valve: N
Positive Shut Off Valve: N
Internal Fuel Filter: n/a
Stainless Steel: N

Part Number: 40106
Kit Number: 40100
Type: Cube
Volts: 12
Max/Min: 7.0 - 4.0
GPH: 32
Positive Lead: n/a
Negative Lead: Ring
Fuel Filter Fitting: 1/8 - 27 NPTF
Lift Min: 36"
Check Valve: N
Positive Shut Off Valve: N
Internal Fuel Filter: n/a
Stainless Steel: N

Part Number: 40106
Kit Number: 40243
Type: Cube
Volts: 12
Max/Min: 7.0 - 4.0
GPH: 32
Positive Lead: n/a
Negative Lead: Ring
Fuel Filter Fitting: 1/8 - 27 NPTF
Lift Min: 36"
Check Valve: N
Positive Shut Off Valve: N
Internal Fuel Filter: n/a
Stainless Steel: N

Part Number: 40107
Kit Number:
Type: Cube
Volts: 12
Max/Min: 10.0 - 7.0
GPH: 34
Positive Lead: n/a
Negative Lead: Ring
Fuel Filter Fitting: 1/8 - 27 NPTF
Lift Min: 24"
Check Valve: N
Positive Shut Off Valve: N
Internal Fuel Filter: n/a
Stainless Steel: N

Part Number: 40107
Kit Number: 40103
Type: Cube
Volts: 12
Max/Min: 10.0 - 7.0
GPH: 34
Positive Lead: n/a
Negative Lead: Ring
Fuel Filter Fitting: 1/8 - 27 NPTF
Lift Min: 24"
Check Valve: N
Positive Shut Off Valve: N
Internal Fuel Filter: n/a
Stainless Steel: N

Part Number: 40107
Kit Number: 40244
Type: Cube
Volts: 12
Max/Min: 10.0 - 7.0
GPH: 34
Positive Lead: n/a
Negative Lead: Ring
Fuel Filter Fitting: 1/8 - 27 NPTF
Lift Min: 24"
Check Valve: N
Positive Shut Off Valve: N
Internal Fuel Filter: n/a
Stainless Steel: N

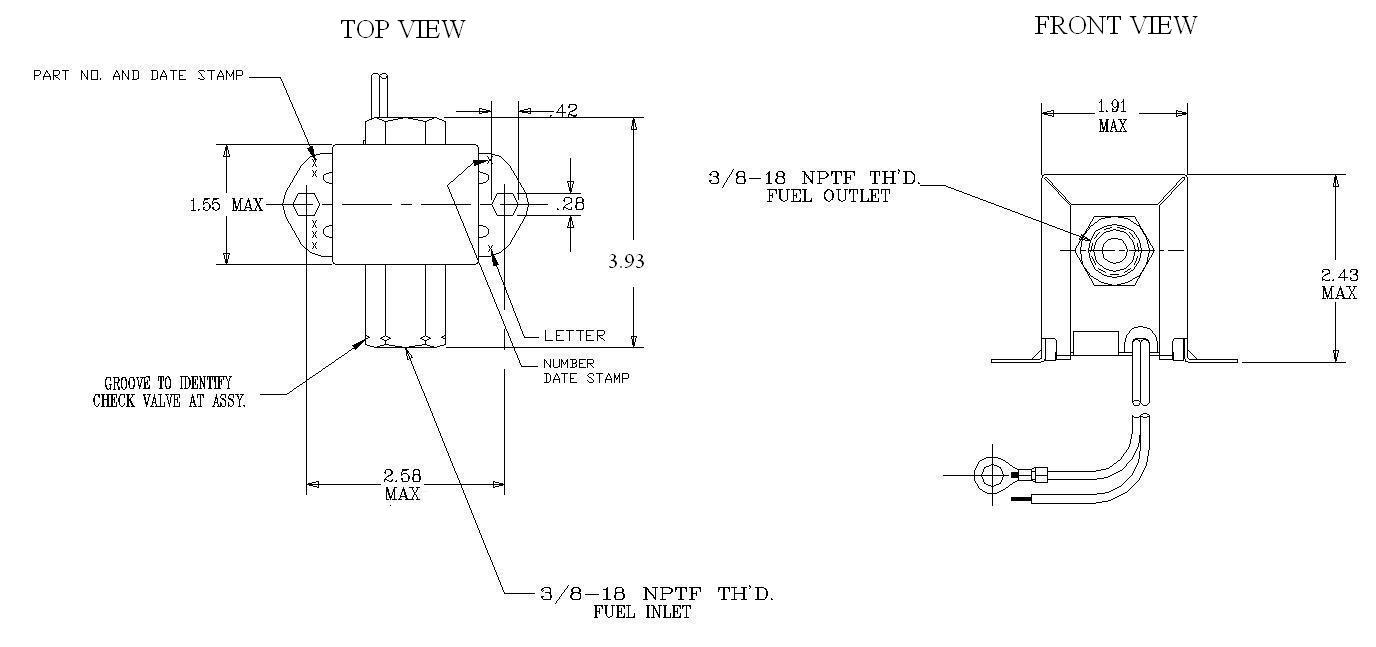

Part Number: 40109
Kit Number:
Type: Cube
Volts: 12
Max/Min: 7.0 - 4.0
GPH: 32
Positive Lead: n/a
Negative Lead: Ring
Fuel Filter Fitting: 3/8 - 18 NPTF
Lift Min: 60"
Check Valve: Y
Positive Shut Off Valve: N
Internal Fuel Filter: n/a
Stainless Steel: N

Part Number: 40128F
Kit Number:
Type: Gold-Flo
Volts: 24
Max/Min: 8.0 - 6.0
GPH: 33
Positive Lead: EMI FILTER
Negative Lead: n/a
Fuel Filter Fitting: 1/4 - 18 EXT
Lift Min: 24"
Check Valve: N
Positive Shut Off Valve: Y
Internal Fuel Filter: 74U
Stainless Steel: N

Part Number: 40131E
Kit Number:
Type: Gold-Flo
Volts: 12
Max/Min: 5.5 - 4.0
GPH: 34
Positive Lead: n/a
Negative Lead: n/a
Fuel Filter Fitting: 1/8 - 27 NPTF
Lift Min: 24"
Check Valve: N
Positive Shut Off Valve: Y
Internal Fuel Filter: 74U
Stainless Steel: N

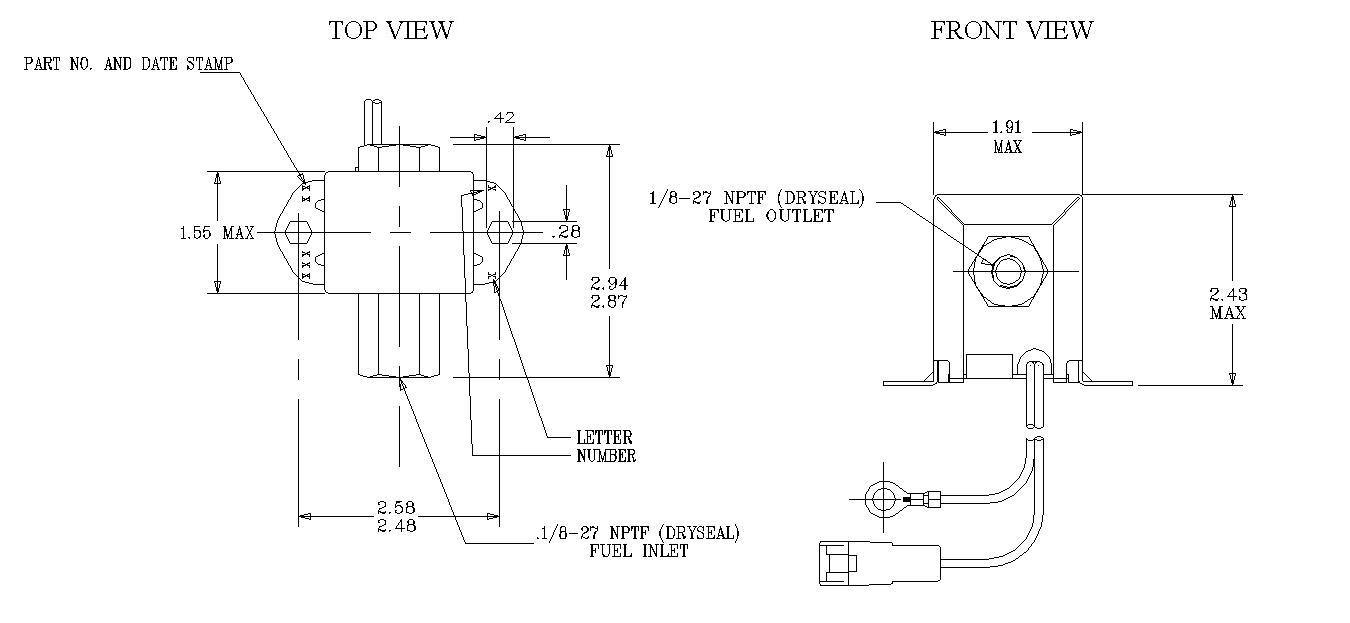

Part Number: 40135
Kit Number:
Type: Cube
Volts: 12
Max/Min: 7.0 - 4.0
GPH: 32
Positive Lead: PACKARD
Negative Lead: Ring
Fuel Filter Fitting: 1/8 - 27 NPTF
Lift Min: 36"
Check Valve: N
Positive Shut Off Valve: N
Internal Fuel Filter: n/a
Stainless Steel: N

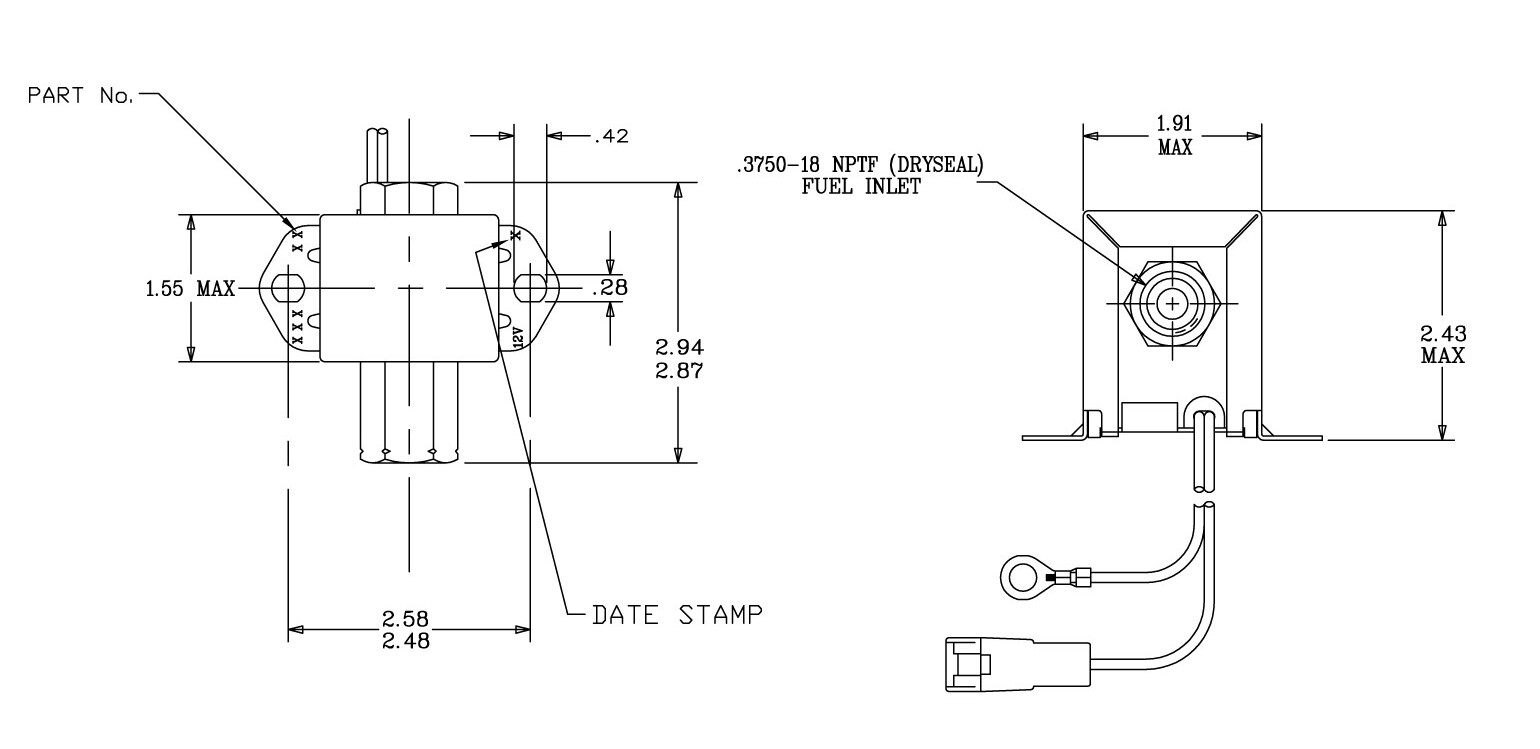

Part Number: 40137
Kit Number:
Type: Cube
Volts: 12
Max/Min: 7.0 - 4.0
GPH: 32
Positive Lead: PACKARD
Negative Lead: Ring
Fuel Filter Fitting: 3/8 - 18 NPTF
Lift Min: 24"
Check Valve: Y
Positive Shut Off Valve: N
Internal Fuel Filter: n/a
Stainless Steel: N

Part Number: 40151
Kit Number:
Type: Cube
Volts: 24
Max/Min: 9.0 - 4.5
GPH: 32
Positive Lead: n/a
Negative Lead: Ring
Fuel Filter Fitting: 3/8 - 18 NPTF
Lift Min: 36"
Check Valve: Y
Positive Shut Off Valve: N
Internal Fuel Filter: n/a
Stainless Steel: N

Part Number: 40163
Kit Number:
Type: Cube
Volts: 12
Max/Min: 2.5 - 1.5
GPH: 17
Positive Lead: .25 BLADE
Negative Lead: Ring
Fuel Filter Fitting: 1/8 - 27 NPTF
Lift Min: 40"
Check Valve: Y
Positive Shut Off Valve: N
Internal Fuel Filter: n/a
Stainless Steel: N

Part Number: 40164
Kit Number:
Type: Cube
Volts: 24
Max/Min: 6.0 - 4.5
GPH: 32
Positive Lead: n/a
Negative Lead: Ring
Fuel Filter Fitting: 1/8 - 27 NPTF
Lift Min: 36"
Check Valve: N
Positive Shut Off Valve: N
Internal Fuel Filter: n/a
Stainless Steel: N

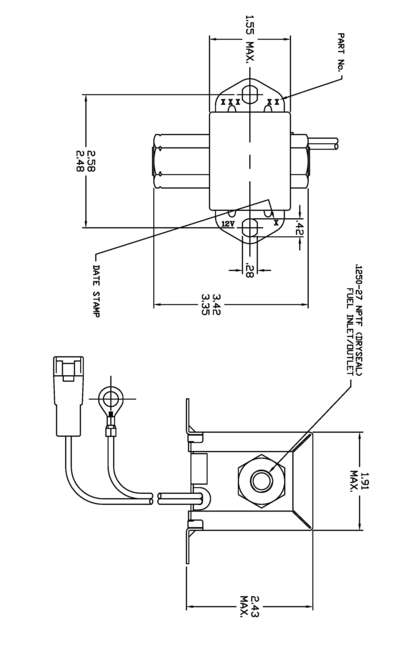

Part Number: 40171
Kit Number:
Type: Cube
Volts: 12
Max/Min: 3.5 - 2.0
GPH: 15
Positive Lead: PACKARD
Negative Lead: Ring
Fuel Filter Fitting: 1/8 - 27 NPTF
Lift Min: 40"
Check Valve: Y
Positive Shut Off Valve: Y
Internal Fuel Filter: n/a
Stainless Steel: N

Part Number: 40176
Kit Number:
Type: Cube
Volts: 12
Max/Min: 5.0 - 3.5
GPH: 19
Positive Lead: n/a
Negative Lead: Ring
Fuel Filter Fitting: 1/8 - 27 NPTF
Lift Min: 60"
Check Valve: Y
Positive Shut Off Valve: Y
Internal Fuel Filter: n/a
Stainless Steel: N

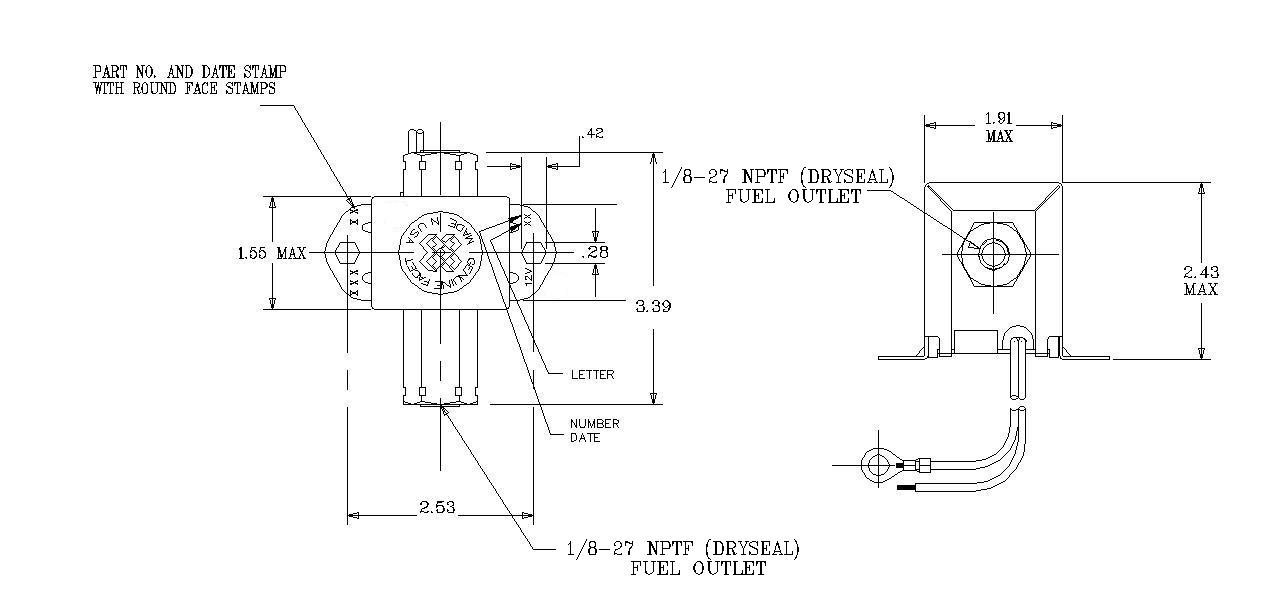

Part Number: 40177
Kit Number:
Type: Cube
Volts: 12
Max/Min: 2.0 - 1.0
GPH: 7
Positive Lead: n/a
Negative Lead: Ring
Fuel Filter Fitting: 1/8 - 27 NPTF
Lift Min: 40"
Check Valve: Y
Positive Shut Off Valve: Y
Internal Fuel Filter: n/a
Stainless Steel: N

Part Number: 40178
Kit Number:
Type: Cube
Volts: 12
Max/Min: 3.5 - 2.0
GPH: 15
Positive Lead: n/a
Negative Lead: Ring
Fuel Filter Fitting: 1/8 - 27 NPTF
Lift Min: 40"
Check Valve: Y
Positive Shut Off Valve: Y
Internal Fuel Filter: n/a
Stainless Steel: N

Part Number: 40185
Kit Number:
Type: Cube
Volts: 12
Max/Min: 11.5 - 9.0
GPH: 32
Positive Lead: n/a
Negative Lead: Ring
Fuel Filter Fitting: 1/8 - 27 NPTF
Lift Min: 96"
Check Valve: Y
Positive Shut Off Valve: N
Internal Fuel Filter: n/a
Stainless Steel: N

Part Number: 40194
Kit Number:
Type: Cube
Volts: 24
Max/Min: 6.5 - 5.0
GPH: 23
Positive Lead: n/a
Negative Lead: Ring
Fuel Filter Fitting: 1/8 - 27 NPTF
Lift Min: 60"
Check Valve: Y
Positive Shut Off Valve: Y
Internal Fuel Filter: n/a
Stainless Steel: N

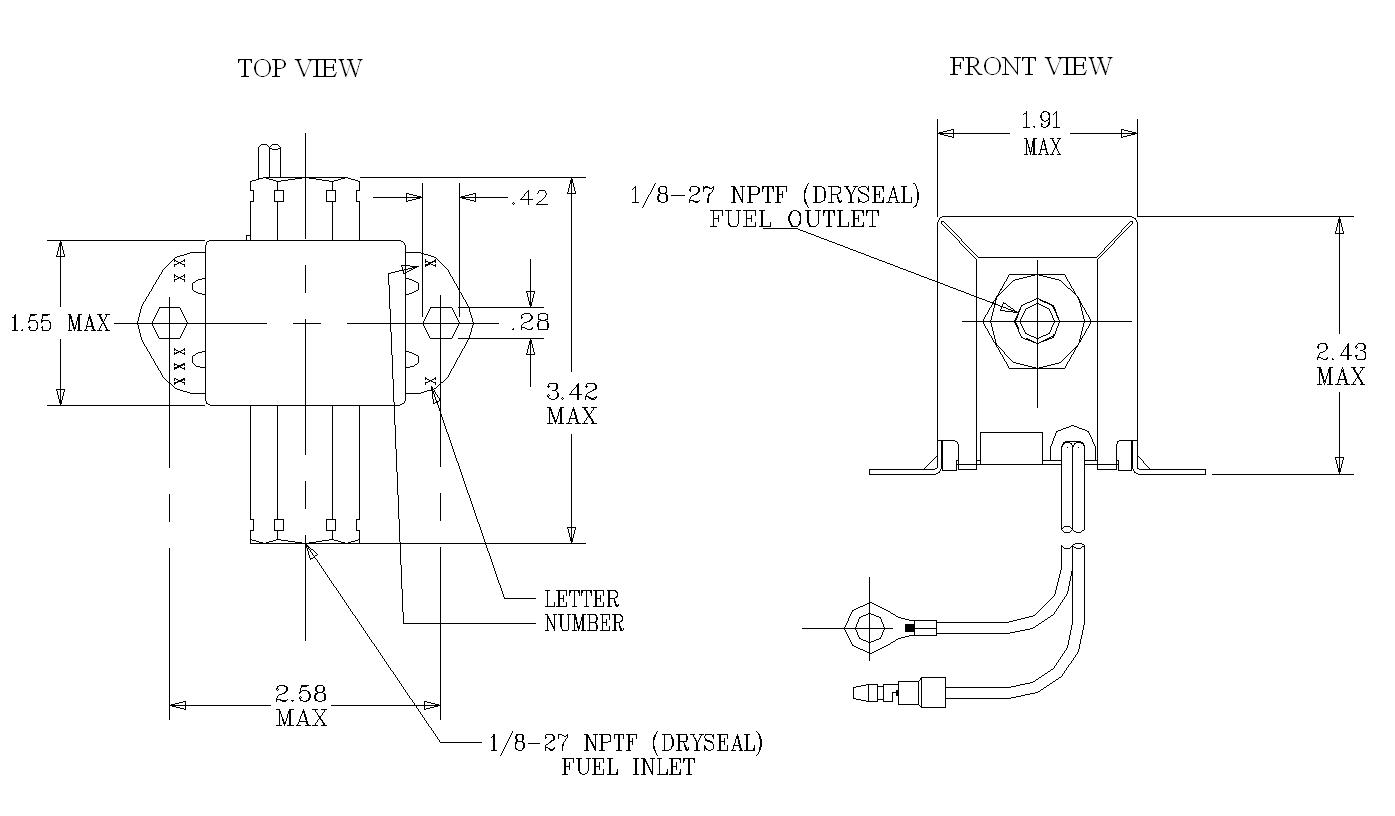

Part Number: 40217
Kit Number:
Type: Cube
Volts: 12
Max/Min: 3.5 - 2.0
GPH: 15
Positive Lead: BULLET
Negative Lead: Ring
Fuel Filter Fitting: 1/8 - 27 NPTF
Lift Min: 36"
Check Valve: Y
Positive Shut Off Valve: Y
Internal Fuel Filter: n/a
Stainless Steel: N

Part Number: 40220E
Kit Number:
Type: Gold-Flo
Volts: 12
Max/Min: 5.5-4.0
GPH: 36
Positive Lead: AMP
Negative Lead: n/a
Fuel Filter Fitting: 1/4 - 18 NPTF
Lift Min: 24"
Check Valve: N
Positive Shut Off Valve: N
Internal Fuel Filter: 400U
Stainless Steel: N

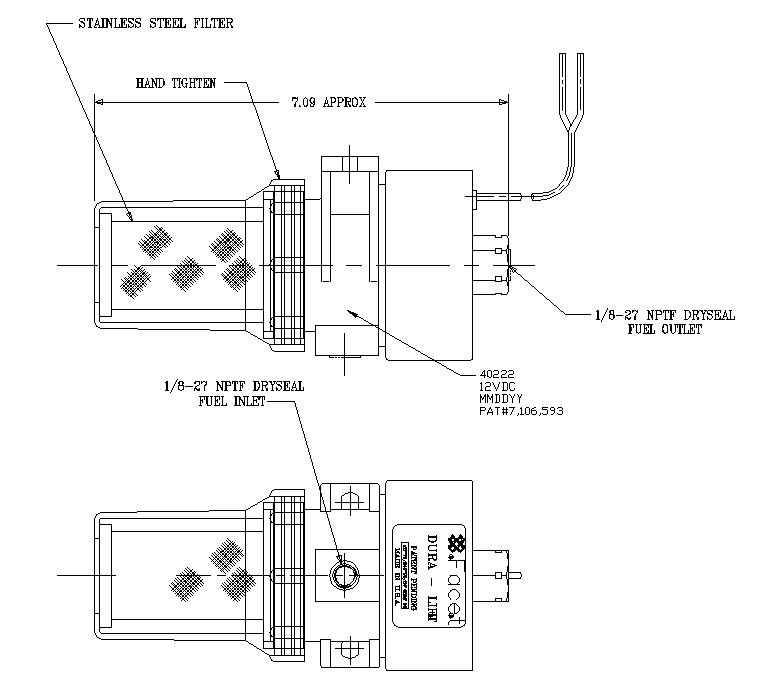

Part Number: 40222
Kit Number:
Type: Dura-Lift
Volts: 12
Max/Min: 11.5 - 9.0
GPH: 33
Positive Lead: n/a
Negative Lead: n/a
Fuel Filter Fitting: 1/8 - 27 NPTF
Lift Min: 120"
Check Valve: Y
Positive Shut Off Valve: N
Internal Fuel Filter: 80U
Stainless Steel: N

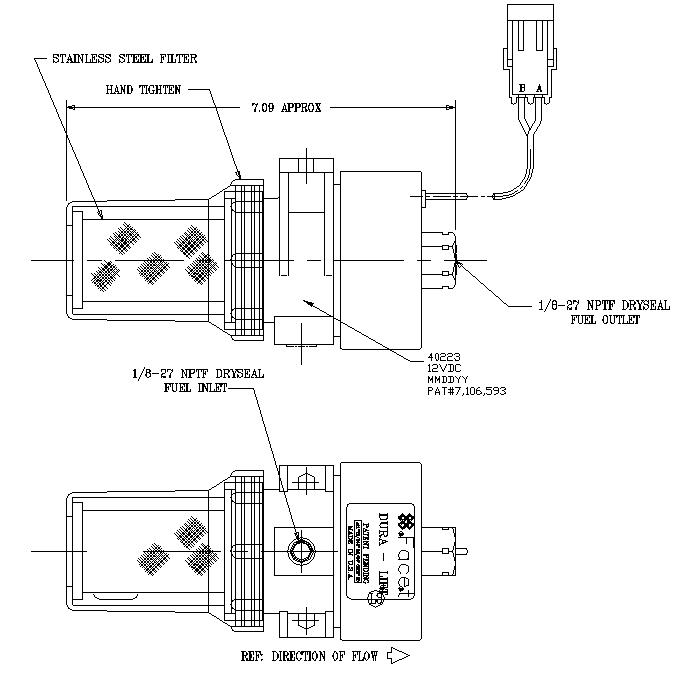

Part Number: 40223
Kit Number:
Type: Dura-Lift
Volts: 12
Max/Min: 11.5 - 9.0
GPH: 33
Positive Lead: Packard
Negative Lead: PACKARD
Fuel Filter Fitting: 1/8 - 27 NPTF
Lift Min: 120"
Check Valve: Y
Positive Shut Off Valve: N
Internal Fuel Filter: 80U
Stainless Steel: N

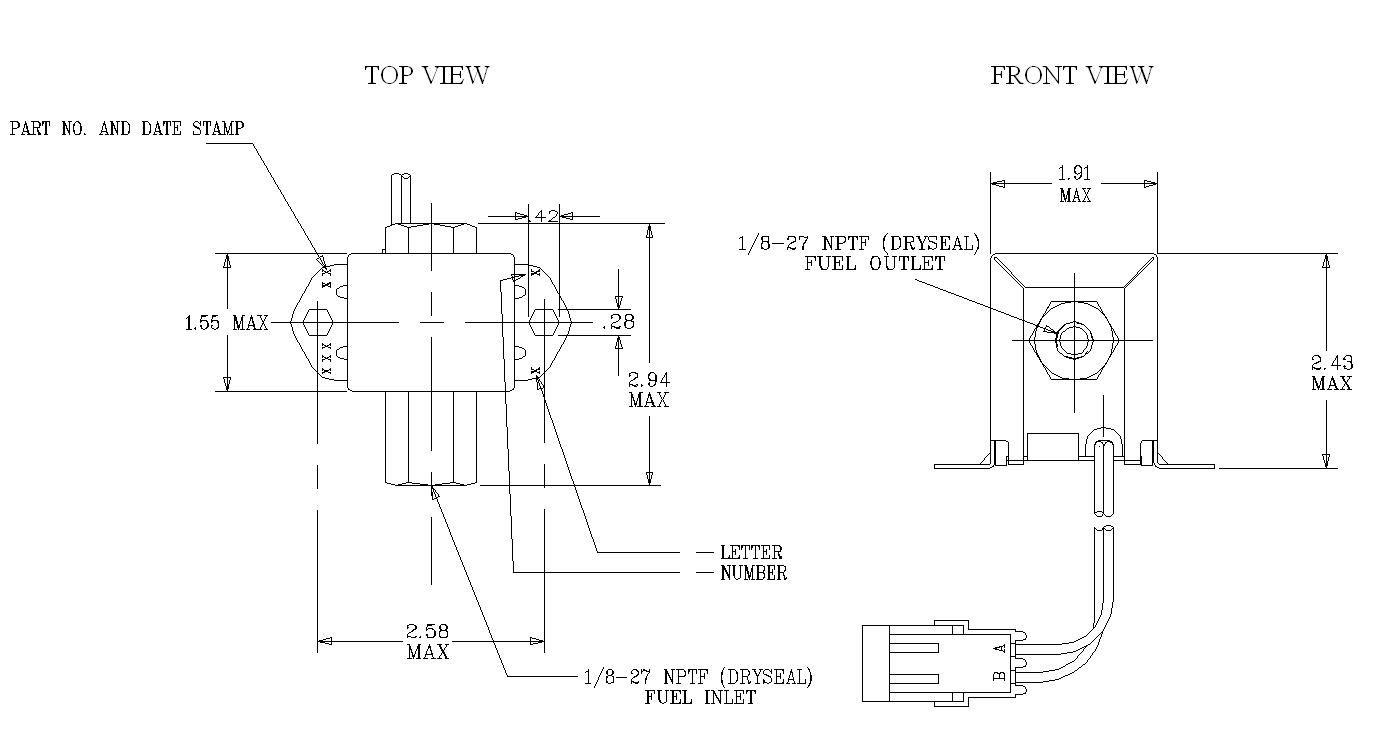

Part Number: 40229
Kit Number:
Type: Cube
Volts: 12
Max/Min: 6.0 - 4.5
GPH: 32
Positive Lead: PACKARD
Negative Lead: n/a
Fuel Filter Fitting: 1/8 - 27 NPTF
Lift Min: 36"
Check Valve: N
Positive Shut Off Valve: N
Internal Fuel Filter: n/a
Stainless Steel: N

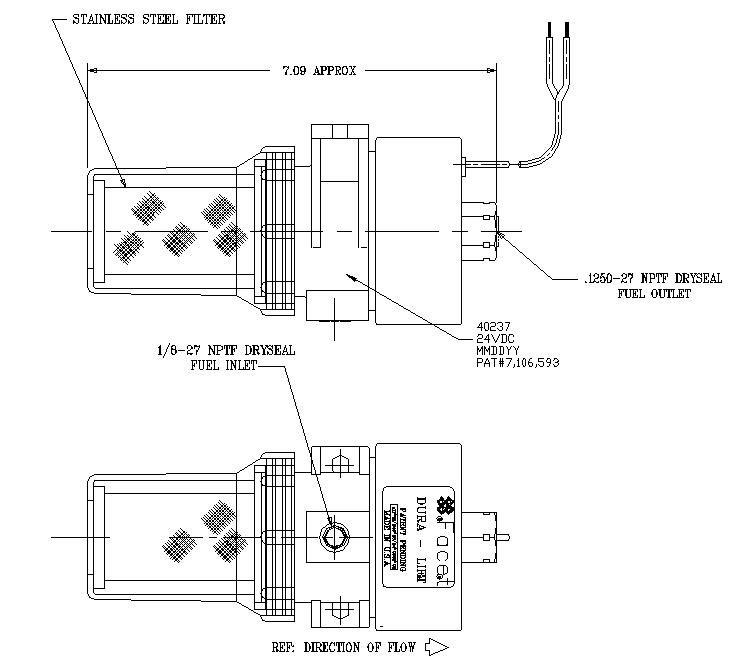

Part Number: 40237
Kit Number:
Type: Dura-Lift
Volts: 24
Max/Min: 11.5 - 9.0
GPH: 33
Positive Lead: n/a
Negative Lead: n/a
Fuel Filter Fitting: 1/8 - 27 NPTF
Lift Min: 120"
Check Valve: Y
Positive Shut Off Valve: N
Internal Fuel Filter: 80U
Stainless Steel: N

Part Number: 40241
Kit Number:
Type: Cube
Volts: 12
Max/Min: 3.5 - 2.0
GPH: 15
Positive Lead: BULLET
Negative Lead: Ring
Fuel Filter Fitting: FEMALE FLARE
Lift Min: 36"
Check Valve: Y
Positive Shut Off Valve: Y
Internal Fuel Filter: n/a
Stainless Steel: N

Part Number: 40250
Kit Number:
Type: Cube
Volts: 12
Max/Min: 4.5 - 3.0
GPH: 32
Positive Lead: PACKARD
Negative Lead: Ring
Fuel Filter Fitting: 1/8 - 27 NPTF
Lift Min: 60"
Check Valve: Y
Positive Shut Off Valve: N
Internal Fuel Filter: n/a
Stainless Steel: N

Part Number: 40251E
Kit Number:
Type: Gold-Flo
Volts: 24
Max/Min: 5.0 - 4.0
GPH: 32
Positive Lead: PACKARD
Negative Lead: n/a
Fuel Filter Fitting: 1/8 - 27 NPTF
Lift Min: 24"
Check Valve: N
Positive Shut Off Valve: N
Internal Fuel Filter: 74U
Stainless Steel: N

Part Number: 40255E
Kit Number:
Type: Gold-Flo
Volts: 24
Max/Min: 7.0 - 4.0
GPH: 32
Positive Lead: PACKARD
Negative Lead: n/a
Fuel Filter Fitting: 1/8 - 27 NPTF
Lift Min: 24"
Check Valve: N
Positive Shut Off Valve: N
Internal Fuel Filter: 74U
Stainless Steel: N

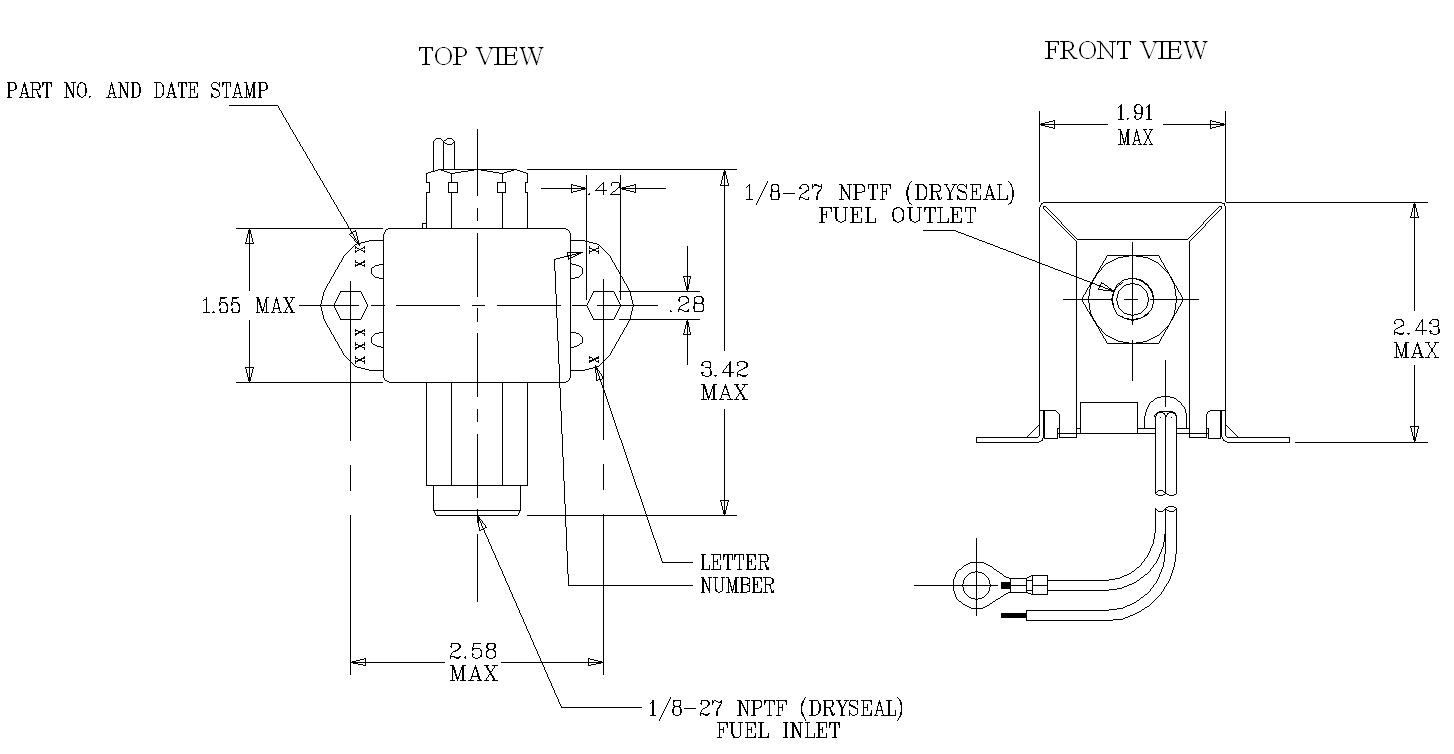

Part Number: 40256
Kit Number:
Type: Cube
Volts: 12
Max/Min: 2.0 - 1.0
GPH: 7
Positive Lead: TYCO
Negative Lead: MOLEX
Fuel Filter Fitting: 1/8 - 27 NPTF
Lift Min: 40"
Check Valve: Y
Positive Shut Off Valve: Y
Internal Fuel Filter: n/a
Stainless Steel: N

Part Number: 40257
Kit Number:
Type: Cube
Volts: 12
Max/Min: 11.5 - 9.0
GPH: 25
Positive Lead: n/a
Negative Lead: n/a
Fuel Filter Fitting: 1/8 - 27 NPTF
Lift Min: 96"
Check Valve: Y
Positive Shut Off Valve: Y
Internal Fuel Filter: n/a
Stainless Steel: N

Part Number: 40258E
Kit Number:
Type: Gold-Flo
Volts: 24
Max/Min: 4.0 - 2.5
GPH: 32
Positive Lead: EMI FILTER
Negative Lead: n/a
Fuel Filter Fitting: 1/8 - 27 NPTF
Lift Min: 24"
Check Valve: N
Positive Shut Off Valve: N
Internal Fuel Filter: 74U
Stainless Steel: N

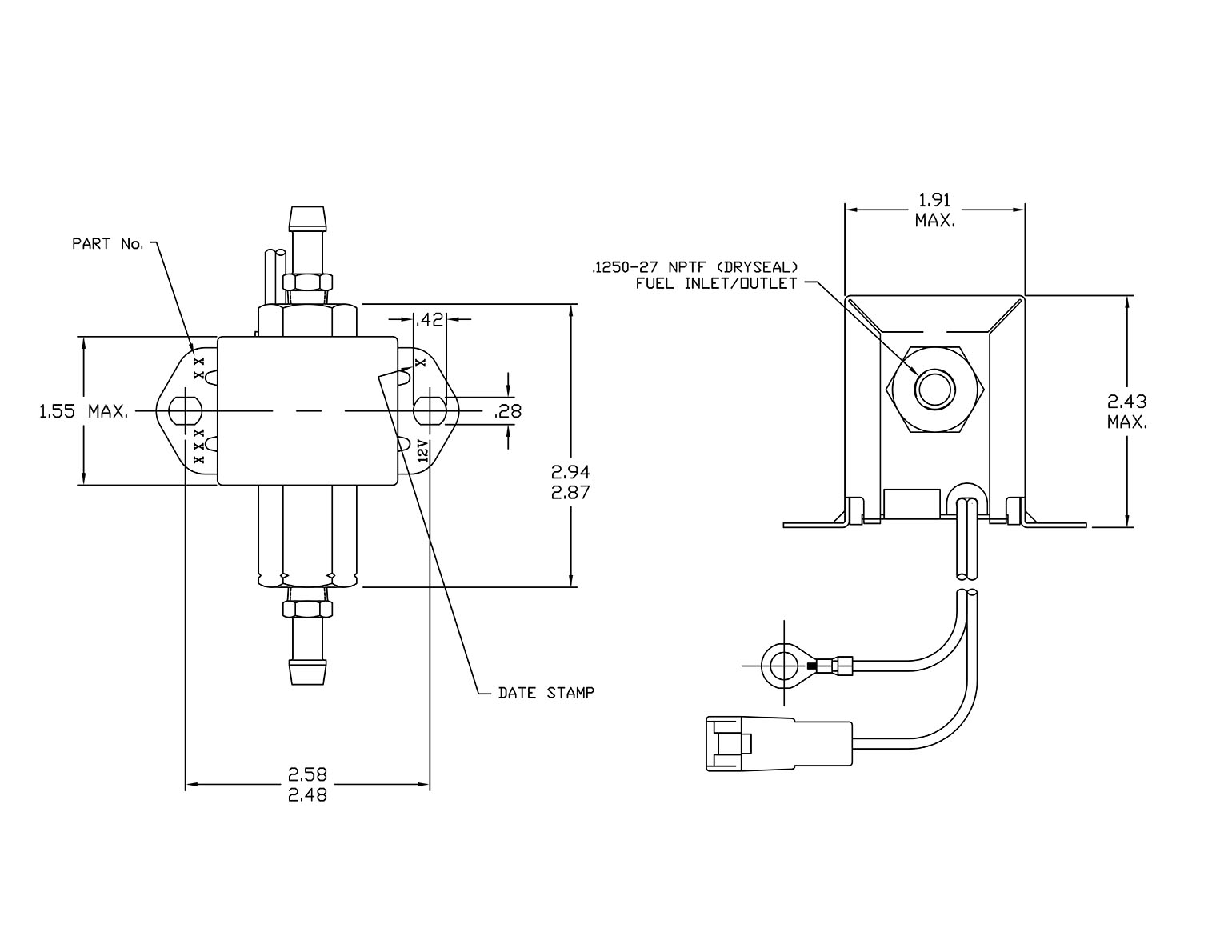

Part Number: 40271
Kit Number:
Type: Cube
Volts: 12
Max/Min: 4.5 - 3.0
GPH: 32
Positive Lead: PACKARD
Negative Lead: Ring
Fuel Filter Fitting: 1/8 - 27 NPTF
Lift Min: 60"
Check Valve: Y
Positive Shut Off Valve: N
Internal Fuel Filter: n/a
Stainless Steel: N

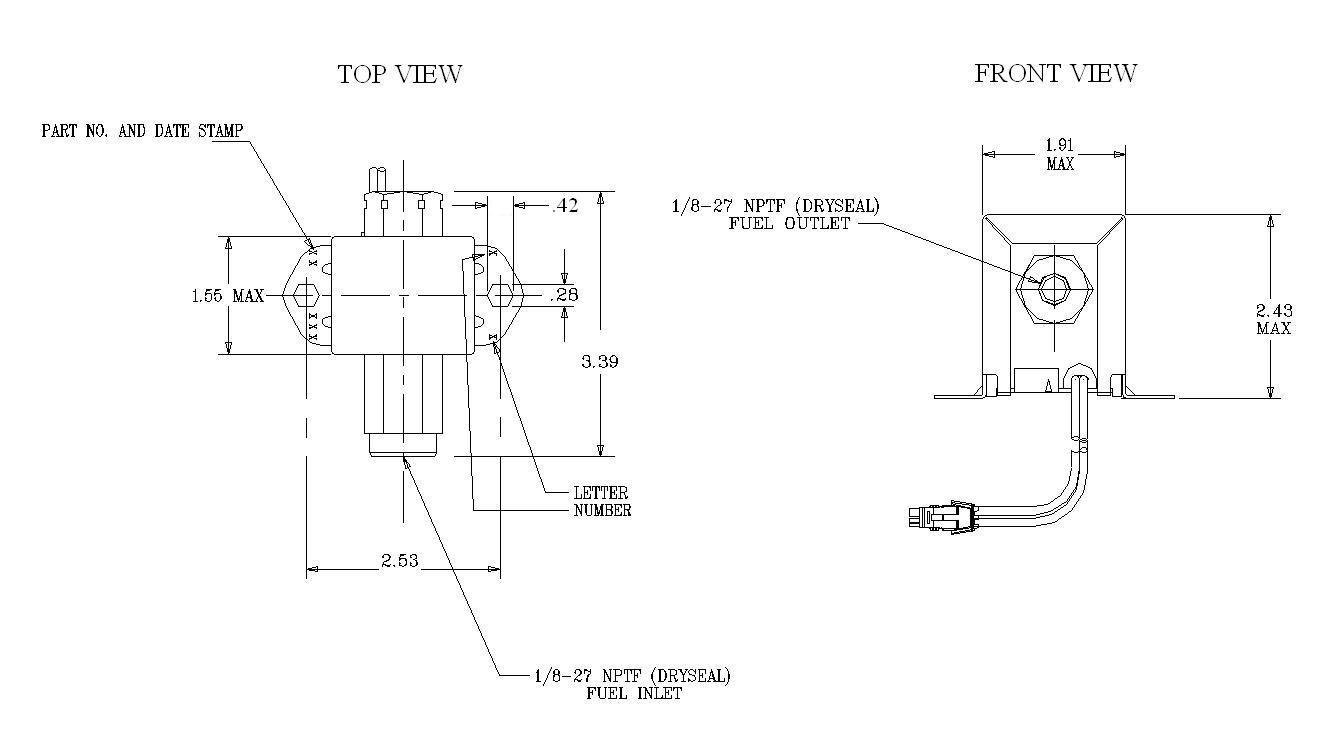

Part Number: 40272
Kit Number: 40273
Type: Cube
Volts: 12
Max/Min: 11.5 - 9.0
GPH: 32
Positive Lead: PACKARD
Negative Lead: n/a
Fuel Filter Fitting: 1/8 - 27 NPTF
Lift Min: 96"
Check Valve: Y
Positive Shut Off Valve: N
Internal Fuel Filter: n/a
Stainless Steel: N
