FACET® GOLD-FLO®

Facet Gold-Flo Electric Fuel Pump.

Tech Info

Fuel Compatibility: All models of the Facet® High-Performance GOLD-FLO® Solid State Fuel Pumps are compatible with gasoline, diesel, biodiesel, blended alcohol fuels, and fuel additives.

Reliability: The new GOLD-FLO® Solid State Fuel Pump is an enhanced version of our Interrupter model. It has solid-state circuitry and will meet or exceed all performance specifications, and is interchangeable. (These pumps have demonstrated an endurance life almost double that of the nearest competitor, according to our test data).

Easy to Install-Easy to Service: Two-bolt mounting makes installations easy. Nothing to adjust. For best results, mount the pump close to the fuel tank and below the fuel level. The pump is self-priming to 24 inches vertical fuel lift. Vertical mounting is preferred to assure maintenance of rated pressures. An installation kit is available for replacement applications. The only service normally required is a simple cleaning of the filter and fuel inlet cavity.

Eliminates Vapor Lock: When properly installed on most vehicles, a constant, smooth, dependable supply of fuel under pressure is assured in the hottest weather or in high altitudes.

Available Features

  • 12 – 24 inches dry lift
  • 20 – 45 GPH
  • 2.5 – 8 PSI
  • Transient Protection-24 volt-only
  • State of the art Electronics
  • Sealed Electronics
  • Built-in Anti-Siphon Valve (Positive shut-off)
  • Reach Compliant
  • RoHS Compliant
  • Complies to Mil-std-461D
  • Replaceable 74 micron filter
  • Built-in magnet to collect metal particles for additional filtration
  • 1.6 amp average
  • Self Priming and Self Regulating
  • 32 ounces and 5 inches
  • Corrosion Resistant over 100 hours of salt spray
  • Operating Temperature Range: -40F to 180F
s

Not Intended for Aircraft Use

WARNING: FACET AND PUROLATOR FUEL PUMPS SHOULD NOT BE USED IN AIRCRAFT AS THEY ARE NOT DESIGNED, TESTED OR MANUFACTURED FOR ANY AIRCRAFT APPLICATIONS.

FACET® CUBE®

Facet Cube Electric Fuel Pump.

Tech Info

Fuel Compatibility: All models of the Facet® CUBE® Fuel Pumps are compatible with gasoline, diesel, biodiesel, blended alcohol fuels, and fuel additives.

Solid-State Reliability: Proven on thousands of original equipment applications. No electrical contacts. No bearings or diaphragms to wear out or fatigue. Lasts four to five times longer than many other electric fuel pumps.

Easy to Install: Two-bolt installation plus the small size makes installation easy. For best results, mount the pump close to the fluid or fuel tank and below the liquid level.
Eliminates Vapor Lock: When properly installed on most vehicles a constant, smooth, dependable supply of fuel under pressure is assured in the hottest weather or in high altitudes.

Available Features

  • Reach Compliant
  • RoHS Compliant
  • UL Listed AU1501 Compliant
  • 12 – 84 inches minimum dry lift
  • 6 – 50 GPH
  • 1 – 15 PSI
  • Transient Protection
  • State of the art Electronics
  • Sealed Electronics
  • Reverse Polarity protection
  • Built-in check valve
  • ELV Compliant
  • 1.6 amp average
  • Self Priming and Self Regulating
  • 18 ounces and 3 inches
s

Not Intended for Aircraft Use

WARNING: FACET AND PUROLATOR FUEL PUMPS SHOULD NOT BE USED IN AIRCRAFT AS THEY ARE NOT DESIGNED, TESTED OR MANUFACTURED FOR ANY AIRCRAFT APPLICATIONS.

Facet® POSI-FLO®

Facet Posi-Flo Electric Fuel Pump.

Tech Info

Fuel Compatibility: All models of the Facet® POSI-FLO® Pumps are compatible with gasoline, diesel, biodiesel, blended alcohol fuels and fuel additives.

Reliability: Proven on thousands of original equipment applications. No bearings, electrical contacts, or diaphragms to wear out or fatigue. Lasts four to five times longer than many other electric pumps.

Easy to Install-Easy to Service: Two bolt installation plus the small size makes installation easy. For best results, mount the pump close to the fluid or fuel tank and below the liquid level.

Eliminates Vapor Lock: When properly installed on most vehicles a constant, smooth, dependable supply of fuel under pressure is assured in the hottest weather or in high altitudes.

Available Features

  • 12 inches minimum dry lift
  • 23 – 40 GPH
  • 1.5 – 10 PSI
  • ESD compliant
  • 1.5 amp average
  • Reach Compliant
  • RoHS Compliant
  • Diesel Priming and Self Regulating
  • Light-Weight – Compact
  • Internal 3.5 amp fuse
s

Not Intended for Aircraft Use

WARNING: FACET AND PUROLATOR FUEL PUMPS SHOULD NOT BE USED IN AIRCRAFT AS THEY ARE NOT DESIGNED, TESTED OR MANUFACTURED FOR ANY AIRCRAFT APPLICATIONS.

Facet® DURA-LIFT®

Facet Dura-Lift Electric Fuel Pump.

Tech Info

Application: Refrigeration trucks, marine generator sets, diesel filtration systems, industrial applications, and other diesel lift applications. These pumps are rated for diesel fuel, gasoline, blended alcohol fuels, and fuel additives.

Solid-State Reliability: Proven on many original equipment applications No electrical contacts. No bearings or diaphragms to wear out or fatigue. Endurance life almost doubles that of our nearest competitor.

Easy to Install-Easy to Service: Two-bolt mounting makes installations easy. Nothing to adjust. The pump is self-priming to 120 inches (3.0 m). Vertical mounting is preferred to assure maintenance of rated pressures. The transparent housing allows for the visual capability to monitor the cleanliness of the stainless steel filter.

Eliminates Vapor Lock: When properly installed on most vehicles, a constant, smooth, dependable supply of fuel under pressure is assured in the hottest weather or in high altitudes.

Available Features

  • Self-priming with a 10 ft. minimum lift
  • Transient Protection
  • Check valve
  • 4 hour dry run
  • Self-regulating
  • 33 – 50 GPH
  • 15 – 4 PSI
  • VCA approved EC 95/54
  • Reach Compliant
  • RoHS Complaint
  • State-of-the-Art Electronic
  • Sealed Electronics
  • Reverse Polarity Protection
  • Corrosion Resistant over 100 hours salt spray
  • Durable Transparent fuel bowl
  • Light Weight – 3LBs at 7 1/4”
  • Low Power Requirements 1.4 amp on average
  • Operating Temperature Range: -40F to 180F
s

Not Intended for Aircraft Use

WARNING: FACET AND PUROLATOR FUEL PUMPS SHOULD NOT BE USED IN AIRCRAFT AS THEY ARE NOT DESIGNED, TESTED OR MANUFACTURED FOR ANY AIRCRAFT APPLICATIONS.

Facet® DURA-LIFT II®

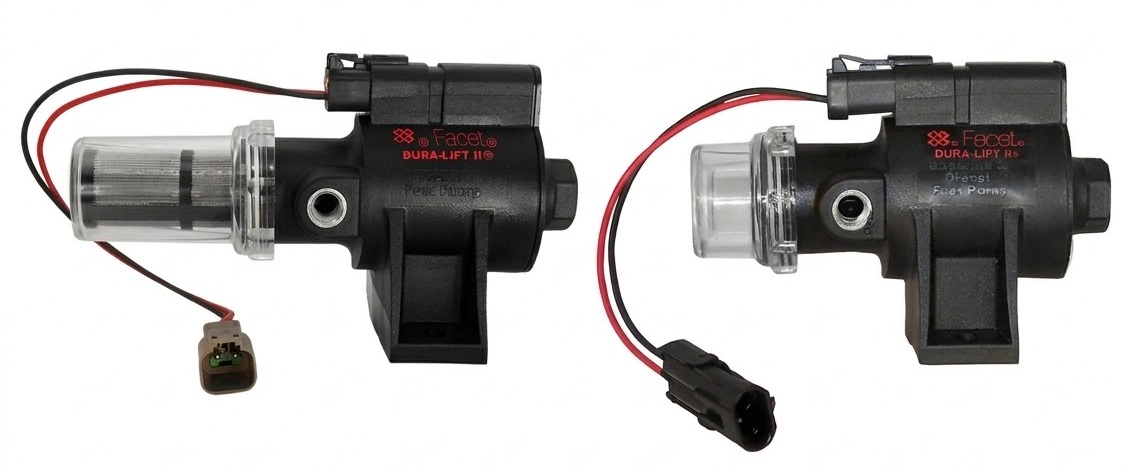

Dura-Lift II component.

Tech Info

Applications: The DURA-LIFT II®

is designed to replace the current DURA-LIFT® in all applications such as refrigeration truck and trailer units, all off road equipment such as ag and industrial compact equipment, compressors, generator sets, welders and much more. This fuel pump is rated for gasoline, diesel, blended alcohol and fuel additives.

Solid-State Reliability: Designed with the latest state of the art electronic technology to support today’s sophisticated equipment. The integrated power outlet allows easy hookup to any electrical system making this the most universal connection in the market.

Integral fuel filter: The DURA-LIFT II® comes with an 80 micron stainless steel fuel filter that can be cleaned or replaced as needed. It also has a clear filter bowl for easy inspection of the fuel and filter.

Easy to Install – Easy to service: The DURA-LIFT II® is specifically designed to replace the current DURA-LIFT® in all application as a one for one interchange however, it has the same mounting dimensions as the Cube, POSI-FLO®, GOLD-FLO® style pumps and can also replace any of these pumps in the same location providing there is sufficient clearances.

Available Features

  • Self-priming with a 10ft minimum vertical lift
  • Transient Protection
  • Reverse Polarity Protection
  • Internal Check Valve
  • 33 – 50 gph free flow by part number
  • 4 – 15 psi by part number
  • Reach Compliant
  • RoHs Compliant
  • Sealed Electronics
  • 80 micron stainless steel fuel filter
  • Operating Temperature Range -40F to 200F
  • Average 2 amp draw
  • Weight 1.4 lbs
s

Not Intended for Aircraft Use

WARNING: FACET AND PUROLATOR FUEL PUMPS SHOULD NOT BE USED IN AIRCRAFT AS THEY ARE NOT DESIGNED, TESTED OR MANUFACTURED FOR ANY AIRCRAFT APPLICATIONS.

Motor Components, LLC.

2243 Corning Road
Elmira, NY 14903

Phone

Hours

Monday – Friday
8:00 AM – 5:00 PM
UL Listed AU1501
ISO 9001-2015 ISO 14001:2015 Bureau Veritas Certification
Engineered and Assembled in the USA

Part Number: 40007E
Kit Number:
Type: Gold-Flo
Volts: 12
Max/Min: 5.5 - 4.0
GPH: 36
Positive Lead: n/a
Negative Lead: n/a
Fuel Filter Fitting: 1/4 - 18 NPTF
Lift Min: 24"
Check Valve: N
Positive Shut Off Valve: N
Internal Fuel Filter: 74U
Stainless Steel: N

Part Number: 40010E
Kit Number:
Type: Gold-Flo
Volts: 24 Max/Min: 8.0 - 6.0
GPH: 33
Positive Lead: PACKARD
Negative Lead: n/a
Fuel Filter Fitting: 1/8 - 27 NPTF
Lift Min: 24"
Check Valve: N
Positive Shut Off Valve: N
Internal Fuel Filter: 74U
Stainless Steel: N

Part Number: 40051E
Kit Number:
Type: Gold-Flo
Volts: 12
Max/Min: 8.0 - 6.0
GPH: 32
Positive Lead: n/a
Negative Lead: n/a
Fuel Filter Fitting: 1/8 - 27 NPTF
Lift Min: 24"
Check Valve: N
Positive Shut Off Valve: Y
Internal Fuel Filter: 74U
Stainless Steel: N

Part Number: 40104
Kit Number:
Type: Cube
Volts: 12
Max/Min: 4.0 - 1.5
GPH: 25
Positive Lead: n/a
Negative Lead: Ring
Fuel Filter Fitting: 1/8 - 27 NPTF
Lift Min: 36"
Check Valve: N
Positive Shut Off Valve: N
Internal Fuel Filter: n/a
Stainless Steel: N


Part Number: 40104
Kit Number:
Type: Cube
Volts: 12
Max/Min: 4.0 - 1.5
GPH: 25
Positive Lead: n/a
Negative Lead: Ring
Fuel Filter Fitting: 1/8 - 27 NPTF
Lift Min: 36"
Check Valve: N
Positive Shut Off Valve: N
Internal Fuel Filter: n/a
Stainless Steel: N

Part Number: 40104
Kit Number: FEP42SV
Type: Cube
Volts: 12
Max/Min: 4.0 - 1.5
GPH: 25
Positive Lead: n/a
Negative Lead: Ring
Fuel Filter Fitting: 1/8 - 27 NPTF
Lift Min: 36"
Check Valve: N
Positive Shut Off Valve: N
Internal Fuel Filter: n/a
Stainless Steel: N

Part Number: 40104
Kit Number: 40245
Type: Cube
Volts: 12
Max/Min: 4.0 - 1.5
GPH: 25
Positive Lead: n/a
Negative Lead: Ring
Fuel Filter Fitting: 1/8 - 27 NPTF
Lift Min: 36"
Check Valve: N
Positive Shut Off Valve: N
Internal Fuel Filter: n/a
Stainless Steel: N

Part Number: 40105
Kit Number:
Type: Cube
Volts: 12
Max/Min: 4.5 - 3.0
GPH: 30
Positive Lead: n/a
Negative Lead: Ring
Fuel Filter Fitting: 1/8 - 27 NPTF
Lift Min: 36"
Check Valve: N
Positive Shut Off Valve: N
Internal Fuel Filter: n/a
Stainless Steel: N

Part Number: 40105
Kit Number: 40101
Type: Cube
Volts: 12
Max/Min: 4.5 - 3.0
GPH: 30
Positive Lead: n/a
Negative Lead: Ring
Fuel Filter Fitting: 1/8 - 27 NPTF
Lift Min: 36"
Check Valve: N
Positive Shut Off Valve: N
Internal Fuel Filter: n/a
Stainless Steel: N

Part Number: 40105
Kit Number: 40242
Type: Cube
Volts: 12
Max/Min: 4.5 - 3.0
GPH: 30
Positive Lead: n/a
Negative Lead: Ring
Fuel Filter Fitting: 1/8 - 27 NPTF
Lift Min: 36"
Check Valve: N
Positive Shut Off Valve: N
Internal Fuel Filter: n/a
Stainless Steel: N

Part Number: 40106
Kit Number:
Type: Cube
Volts: 12
Max/Min: 7.0 - 4.0
GPH: 32
Positive Lead: n/a
Negative Lead: Ring
Fuel Filter Fitting: 1/8 - 27 NPTF
Lift Min: 36"
Check Valve: N
Positive Shut Off Valve: N
Internal Fuel Filter: n/a
Stainless Steel: N

Part Number: 40106
Kit Number: FEP12SV
Type: Cube
Volts: 12
Max/Min: 7.0 - 4.0
GPH: 32
Positive Lead: n/a
Negative Lead: Ring
Fuel Filter Fitting: 1/8 - 27 NPTF
Lift Min: 36"
Check Valve: N
Positive Shut Off Valve: N
Internal Fuel Filter: n/a
Stainless Steel: N

Part Number: 40106
Kit Number: 40100
Type: Cube
Volts: 12
Max/Min: 7.0 - 4.0
GPH: 32
Positive Lead: n/a
Negative Lead: Ring
Fuel Filter Fitting: 1/8 - 27 NPTF
Lift Min: 36"
Check Valve: N
Positive Shut Off Valve: N
Internal Fuel Filter: n/a
Stainless Steel: N

Part Number: 40106
Kit Number: 40243
Type: Cube
Volts: 12
Max/Min: 7.0 - 4.0
GPH: 32
Positive Lead: n/a
Negative Lead: Ring
Fuel Filter Fitting: 1/8 - 27 NPTF
Lift Min: 36"
Check Valve: N
Positive Shut Off Valve: N
Internal Fuel Filter: n/a
Stainless Steel: N

Part Number: 40107
Kit Number:
Type: Cube
Volts: 12
Max/Min: 10.0 - 7.0
GPH: 34
Positive Lead: n/a
Negative Lead: Ring
Fuel Filter Fitting: 1/8 - 27 NPTF
Lift Min: 24"
Check Valve: N
Positive Shut Off Valve: N
Internal Fuel Filter: n/a
Stainless Steel: N

Part Number: 40107
Kit Number: 40103
Type: Cube
Volts: 12
Max/Min: 10.0 - 7.0
GPH: 34
Positive Lead: n/a
Negative Lead: Ring
Fuel Filter Fitting: 1/8 - 27 NPTF
Lift Min: 24"
Check Valve: N
Positive Shut Off Valve: N
Internal Fuel Filter: n/a
Stainless Steel: N

Part Number: 40107
Kit Number: 40244
Type: Cube
Volts: 12
Max/Min: 10.0 - 7.0
GPH: 34
Positive Lead: n/a
Negative Lead: Ring
Fuel Filter Fitting: 1/8 - 27 NPTF
Lift Min: 24"
Check Valve: N
Positive Shut Off Valve: N
Internal Fuel Filter: n/a
Stainless Steel: N

Part Number: 40109
Kit Number:
Type: Cube
Volts: 12
Max/Min: 7.0 - 4.0
GPH: 32
Positive Lead: n/a
Negative Lead: Ring
Fuel Filter Fitting: 3/8 - 18 NPTF
Lift Min: 60"
Check Valve: Y
Positive Shut Off Valve: N
Internal Fuel Filter: n/a
Stainless Steel: N

Part Number: 40128F
Kit Number:
Type: Gold-Flo
Volts: 24
Max/Min: 8.0 - 6.0
GPH: 33
Positive Lead: EMI FILTER
Negative Lead: n/a
Fuel Filter Fitting: 1/4 - 18 EXT
Lift Min: 24"
Check Valve: N
Positive Shut Off Valve: Y
Internal Fuel Filter: 74U
Stainless Steel: N

Part Number: 40131E
Kit Number:
Type: Gold-Flo
Volts: 12
Max/Min: 5.5 - 4.0
GPH: 34
Positive Lead: n/a
Negative Lead: n/a
Fuel Filter Fitting: 1/8 - 27 NPTF
Lift Min: 24"
Check Valve: N
Positive Shut Off Valve: Y
Internal Fuel Filter: 74U
Stainless Steel: N

Part Number: 40135
Kit Number:
Type: Cube
Volts: 12
Max/Min: 7.0 - 4.0
GPH: 32
Positive Lead: PACKARD
Negative Lead: Ring
Fuel Filter Fitting: 1/8 - 27 NPTF
Lift Min: 36"
Check Valve: N
Positive Shut Off Valve: N
Internal Fuel Filter: n/a
Stainless Steel: N

Part Number: 40137
Kit Number:
Type: Cube
Volts: 12
Max/Min: 7.0 - 4.0
GPH: 32
Positive Lead: PACKARD
Negative Lead: Ring
Fuel Filter Fitting: 3/8 - 18 NPTF
Lift Min: 24"
Check Valve: Y
Positive Shut Off Valve: N
Internal Fuel Filter: n/a
Stainless Steel: N

Part Number: 40151
Kit Number:
Type: Cube
Volts: 24
Max/Min: 9.0 - 4.5
GPH: 32
Positive Lead: n/a
Negative Lead: Ring
Fuel Filter Fitting: 3/8 - 18 NPTF
Lift Min: 36"
Check Valve: Y
Positive Shut Off Valve: N
Internal Fuel Filter: n/a
Stainless Steel: N

Part Number: 40163
Kit Number:
Type: Cube
Volts: 12
Max/Min: 2.5 - 1.5
GPH: 17
Positive Lead: .25 BLADE
Negative Lead: Ring
Fuel Filter Fitting: 1/8 - 27 NPTF
Lift Min: 40"
Check Valve: Y
Positive Shut Off Valve: N
Internal Fuel Filter: n/a
Stainless Steel: N

Part Number: 40164
Kit Number:
Type: Cube
Volts: 24
Max/Min: 6.0 - 4.5
GPH: 32
Positive Lead: n/a
Negative Lead: Ring
Fuel Filter Fitting: 1/8 - 27 NPTF
Lift Min: 36"
Check Valve: N
Positive Shut Off Valve: N
Internal Fuel Filter: n/a
Stainless Steel: N

Part Number: 40171
Kit Number:
Type: Cube
Volts: 12
Max/Min: 3.5 - 2.0
GPH: 15
Positive Lead: PACKARD
Negative Lead: Ring
Fuel Filter Fitting: 1/8 - 27 NPTF
Lift Min: 40"
Check Valve: Y
Positive Shut Off Valve: Y
Internal Fuel Filter: n/a
Stainless Steel: N

Part Number: 40176
Kit Number:
Type: Cube
Volts: 12
Max/Min: 5.0 - 3.5
GPH: 19
Positive Lead: n/a
Negative Lead: Ring
Fuel Filter Fitting: 1/8 - 27 NPTF
Lift Min: 60"
Check Valve: Y
Positive Shut Off Valve: Y
Internal Fuel Filter: n/a
Stainless Steel: N

Part Number: 40177
Kit Number:
Type: Cube
Volts: 12
Max/Min: 2.0 - 1.0
GPH: 7
Positive Lead: n/a
Negative Lead: Ring
Fuel Filter Fitting: 1/8 - 27 NPTF
Lift Min: 40"
Check Valve: Y
Positive Shut Off Valve: Y
Internal Fuel Filter: n/a
Stainless Steel: N

Part Number: 40178
Kit Number:
Type: Cube
Volts: 12
Max/Min: 3.5 - 2.0
GPH: 15
Positive Lead: n/a
Negative Lead: Ring
Fuel Filter Fitting: 1/8 - 27 NPTF
Lift Min: 40"
Check Valve: Y
Positive Shut Off Valve: Y
Internal Fuel Filter: n/a
Stainless Steel: N

Part Number: 40185
Kit Number:
Type: Cube
Volts: 12
Max/Min: 11.5 - 9.0
GPH: 32
Positive Lead: n/a
Negative Lead: Ring
Fuel Filter Fitting: 1/8 - 27 NPTF
Lift Min: 96"
Check Valve: Y
Positive Shut Off Valve: N
Internal Fuel Filter: n/a
Stainless Steel: N

Part Number: 40194
Kit Number:
Type: Cube
Volts: 24
Max/Min: 6.5 - 5.0
GPH: 23
Positive Lead: n/a
Negative Lead: Ring
Fuel Filter Fitting: 1/8 - 27 NPTF
Lift Min: 60"
Check Valve: Y
Positive Shut Off Valve: Y
Internal Fuel Filter: n/a
Stainless Steel: N

Part Number: 40217
Kit Number:
Type: Cube
Volts: 12
Max/Min: 3.5 - 2.0
GPH: 15
Positive Lead: BULLET
Negative Lead: Ring
Fuel Filter Fitting: 1/8 - 27 NPTF
Lift Min: 36"
Check Valve: Y
Positive Shut Off Valve: Y
Internal Fuel Filter: n/a
Stainless Steel: N

Part Number: 40220E
Kit Number:
Type: Gold-Flo
Volts: 12
Max/Min: 5.5-4.0
GPH: 36
Positive Lead: AMP
Negative Lead: n/a
Fuel Filter Fitting: 1/4 - 18 NPTF
Lift Min: 24"
Check Valve: N
Positive Shut Off Valve: N
Internal Fuel Filter: 400U
Stainless Steel: N

Part Number: 40222
Kit Number:
Type: Dura-Lift
Volts: 12
Max/Min: 11.5 - 9.0
GPH: 33
Positive Lead: n/a
Negative Lead: n/a
Fuel Filter Fitting: 1/8 - 27 NPTF
Lift Min: 120"
Check Valve: Y
Positive Shut Off Valve: N
Internal Fuel Filter: 80U
Stainless Steel: N

Part Number: 40223
Kit Number:
Type: Dura-Lift
Volts: 12
Max/Min: 11.5 - 9.0
GPH: 33
Positive Lead: Packard
Negative Lead: PACKARD
Fuel Filter Fitting: 1/8 - 27 NPTF
Lift Min: 120"
Check Valve: Y
Positive Shut Off Valve: N
Internal Fuel Filter: 80U
Stainless Steel: N

Part Number: 40229
Kit Number:
Type: Cube
Volts: 12
Max/Min: 6.0 - 4.5
GPH: 32
Positive Lead: PACKARD
Negative Lead: n/a
Fuel Filter Fitting: 1/8 - 27 NPTF
Lift Min: 36"
Check Valve: N
Positive Shut Off Valve: N
Internal Fuel Filter: n/a
Stainless Steel: N

Part Number: 40237
Kit Number:
Type: Dura-Lift
Volts: 24
Max/Min: 11.5 - 9.0
GPH: 33
Positive Lead: n/a
Negative Lead: n/a
Fuel Filter Fitting: 1/8 - 27 NPTF
Lift Min: 120"
Check Valve: Y
Positive Shut Off Valve: N
Internal Fuel Filter: 80U
Stainless Steel: N

Part Number: 40241
Kit Number:
Type: Cube
Volts: 12
Max/Min: 3.5 - 2.0
GPH: 15
Positive Lead: BULLET
Negative Lead: Ring
Fuel Filter Fitting: FEMALE FLARE
Lift Min: 36"
Check Valve: Y
Positive Shut Off Valve: Y
Internal Fuel Filter: n/a
Stainless Steel: N

Part Number: 40250
Kit Number:
Type: Cube
Volts: 12
Max/Min: 4.5 - 3.0
GPH: 32
Positive Lead: PACKARD
Negative Lead: Ring
Fuel Filter Fitting: 1/8 - 27 NPTF
Lift Min: 60"
Check Valve: Y
Positive Shut Off Valve: N
Internal Fuel Filter: n/a
Stainless Steel: N

Part Number: 40251E
Kit Number:
Type: Gold-Flo
Volts: 24
Max/Min: 5.0 - 4.0
GPH: 32
Positive Lead: PACKARD
Negative Lead: n/a
Fuel Filter Fitting: 1/8 - 27 NPTF
Lift Min: 24"
Check Valve: N
Positive Shut Off Valve: N
Internal Fuel Filter: 74U
Stainless Steel: N

Part Number: 40255E
Kit Number:
Type: Gold-Flo
Volts: 24
Max/Min: 7.0 - 4.0
GPH: 32
Positive Lead: PACKARD
Negative Lead: n/a
Fuel Filter Fitting: 1/8 - 27 NPTF
Lift Min: 24"
Check Valve: N
Positive Shut Off Valve: N
Internal Fuel Filter: 74U
Stainless Steel: N

Part Number: 40256
Kit Number:
Type: Cube
Volts: 12
Max/Min: 2.0 - 1.0
GPH: 7
Positive Lead: TYCO
Negative Lead: MOLEX
Fuel Filter Fitting: 1/8 - 27 NPTF
Lift Min: 40"
Check Valve: Y
Positive Shut Off Valve: Y
Internal Fuel Filter: n/a
Stainless Steel: N

Part Number: 40257
Kit Number:
Type: Cube
Volts: 12
Max/Min: 11.5 - 9.0
GPH: 25
Positive Lead: n/a
Negative Lead: n/a
Fuel Filter Fitting: 1/8 - 27 NPTF
Lift Min: 96"
Check Valve: Y
Positive Shut Off Valve: Y
Internal Fuel Filter: n/a
Stainless Steel: N

Part Number: 40258E
Kit Number:
Type: Gold-Flo
Volts: 24
Max/Min: 4.0 - 2.5
GPH: 32
Positive Lead: EMI FILTER
Negative Lead: n/a
Fuel Filter Fitting: 1/8 - 27 NPTF
Lift Min: 24"
Check Valve: N
Positive Shut Off Valve: N
Internal Fuel Filter: 74U
Stainless Steel: N

Part Number: 40271
Kit Number:
Type: Cube
Volts: 12
Max/Min: 4.5 - 3.0
GPH: 32
Positive Lead: PACKARD
Negative Lead: Ring
Fuel Filter Fitting: 1/8 - 27 NPTF
Lift Min: 60"
Check Valve: Y
Positive Shut Off Valve: N
Internal Fuel Filter: n/a
Stainless Steel: N

Part Number: 40272
Kit Number: 40273
Type: Cube
Volts: 12
Max/Min: 11.5 - 9.0
GPH: 32
Positive Lead: PACKARD
Negative Lead: n/a
Fuel Filter Fitting: 1/8 - 27 NPTF
Lift Min: 96"
Check Valve: Y
Positive Shut Off Valve: N
Internal Fuel Filter: n/a
Stainless Steel: N
